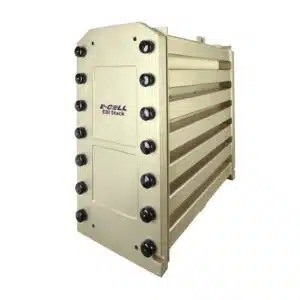

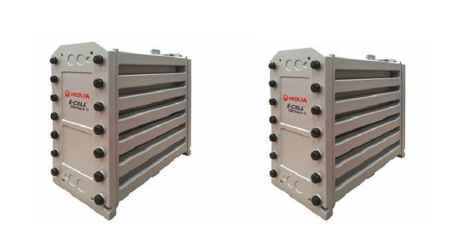

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
  • Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design
उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: VEOLIA
प्रमाणन: CE
मॉडल संख्या: एमके -9
दस्तावेज: Veolia EDI catalog.pdf
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 पीसी
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: मानक निर्यात पैकिंग
प्रसव के समय: 5- 8 काम के दिन
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 60000 यूनिट प्रति माह
संपर्क करें
विस्तृत उत्पाद विवरण
एमके -9 स्टैक आयाम (सीएम चौड़ाई एक्स ऊंचाई एक्स गहराई के रूप में): 30 x 61 x 74 एमके -9 स्टैक कुल विनिमेय आयनों (पीपीएम के रूप में सीएसीओ 3): <13
एमके -9 स्टैक चालकता (μs/सेमी): <22 एमके -9 स्टैक पीएच: 4-11
एमके -9 स्टैक तापमान (° C): 4.4-40 एमके -9 स्टैक कठोरता (पीपीएम के रूप में सीएसीओ 3): <1.0
दबाव में गिरावट: 2.4–3.4 बार (35-50 साई) इनलेट दबाव: ≤ 6.9 बार (100 पीएसआई)
मताधिकार: 0-5.2 एडीसी वोल्टेज: 0-400 वीडीसी
वसूली: 97% तक आवेदन: उच्च-प्रवाह और मजबूत डिजाइन

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

The Veolia E-Cell MK-9 Electrodeionization (EDI) Module is designed for high-flow, continuous production of ultra-pure water in industrial applications, capable of delivering flows up to ​​10 m³/h​​ (44 GPM) with resistivity ​​≥16 MΩ·cm​​ and silica removal to ​​≤5 ppb​​. It eliminates the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for power generation, semiconductors, pharmaceuticals, and microelectronics, the MK-9 operates at recovery rates up to ​​97%​​ and supports hot-water sanitization (up to ​​85°C​​) for stringent hygiene requirements. Its robust construction ensures stability under varying feedwater conditions, with compliance to CE, RoHS, and ISO 9001/14001 standards. The module integrates seamlessly into reverse osmosis (RO) systems for polishing permeate, offering scalability and minimal maintenance
Product Specifications
Attribute Value
Stack Name MK-9
Dimensions (cm) 30 x 61 x 74 (W x H x D)
Total exchangeable anions (ppm as CaCO3) <13
Conductivity (μS/cm) <22
pH Range 4-11
Temperature Range (°C) 4.4-40
Hardness (ppm as CaCO3) <1.0
Silica (ppm as SiO2) <1.0
Typical designed water production (m3/hr) 6.0-10.0
Recovery Rate Up to 97%
Voltage 0–400 VDC
Typical Applications Solar Photovoltaics And Green Hydrogen
Product Overview
The Veolia MK-9 EDI Stack delivers 35 GPM of ultrapure water for demanding industrial applications. E-Cell EDI technology, based on proven production practices, provides industry-leading product water quality, energy efficiency, and reliability.
Key Features & Benefits
  • Optimized Flow Rate (8.0 m³/h): Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production
  • Veolia/Suez Advanced EDI Technology: Incorporates next-generation MK-9 membrane and spacer design for superior ion removal efficiency
  • Zero Chemical Regeneration: Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs and environmental impact
  • Enhanced Energy Efficiency: Optimized stack hydraulics minimize power consumption per liter of purified water
  • Robust Design & Reliability: Engineered for 24/7 continuous operation with high resistance to scaling and fouling
  • Smart Operation & Integration: Compatible with modern PLC/SCADA systems for real-time monitoring
Technical Parameters
Parameter Value
Brand Veolia EDI
Inlet Pressure 6.9 bar (100 psi)
Max Temperature 40°C (104°F)
Pressure Drop 2.4-3.4 bar (35-50 psi)
Flow Rate 8.0m3/h
Shipping Weight 165 kg (364 lbs)
Key Advantages
  • Continuously produces ultrapure water of mixed bed water quality
  • No acid and base regeneration required
  • Guaranteed leak-proof design
  • Simplified system design with no brine injection or concentrated water circulation
Typical Applications
  • Power generation (NOx, boiler feed water)
  • Electronics manufacturing
  • General industrial applications
  • Pharmaceutical & Biotech (WFI pre-treatment)
  • Microelectronics & Semiconductor Manufacturing
  • Laboratory Ultra-Pure Water Systems
Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 0 Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 1 Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design 2
Why Choose Veolia MK-9 EDI?
As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia's global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia's worldwide service and support network.
