Place of Origin: | China |
ब्रांड नाम: | DOW(now Dupont) |
प्रमाणन: | CE |
Model Number: | SFP-2660 |
दस्तावेज: | Dow-UF-SFP-2660-L.pdf |
Minimum Order Quantity: | 1 pc |
---|---|
मूल्य: | बातचीत योग्य |
Packaging Details: | standard export packing |
Delivery Time: | 5- 8 work days |
Payment Terms: | T/T,Western Union |
Supply Ability: | 60000 Units per Month |
SFP-2660 Membrane area: | 33m² | SFP-2660 Nominal pore diameter: | 0.03 µm |
---|---|---|---|
SFP-2660 Membrane Operating pressure: | 0.35MPa | SFP-2660 Membrane Flow range: | 1.3 – 4.0 m3/hr |
Filtration accuracy: | 0.01-0.1µm | Filter method: | External pressure |
Temperature: | 1-40ºC | Membrane Particle size (max.): | 300 µ |
Membrane Max backwash pressure: | 2.5 bar | Product Advantages: | High-Flux, Low-Fouling Powerhouse |
Application: | Pretreatment | ||
प्रमुखता देना: | PVDF hollow fiber ultrafiltration membrane,Dupont SFP-2660 ultrafiltration module,33m² ultrafiltration membrane with warranty |

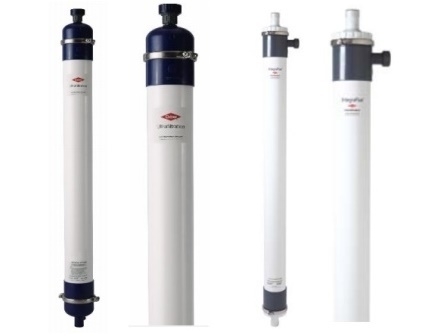

The Dupont SFP-2660 is a high-performance polyvinylidene fluoride (PVDF) hollow fiber ultrafiltration (UF) membrane, engineered to deliver exceptional filtration efficiency and durability in municipal wastewater reuse systems.
Attribute | Value |
---|---|
Membrane area | 33m² |
Nominal pore diameter | 0.03 µm |
Operating pressure | 0.35MPa |
Flow range | 1.3 – 4.0 m3/hr |
Filtration accuracy | 0.01-0.1µm |
Filter method | External pressure |
Temperature range | 1-40ºC |
Max backwash pressure | 2.5 bar |
Model | Type | Part # | Membrane Area (m²/ft²) | Volume (Liters/Gallons) | Weight (Kg/lbs) |
---|---|---|---|---|---|
SFP-2660 | Pretreatment | 280931 | 33 / 355 | 16 / 4.2 | 25/41 / 55/90 |
SFD-2660 | NSF/ANSI 61 Drinking water | 324166 | 33 / 355 | 16 / 4.2 | 25/41 / 55/90 |
Parameter | SI units | US units |
---|---|---|
Filtrate Flux @ 25ºC | 40-120 l/m2/hr | 24-70 gfd |
Flow range | 1.3 - 4.0 m3/hr | 5.9 - 17.3 gpm |
Temperature | 1-40ºC | 34-104ºF |
Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
Max operating TMP | 2.1 bar | 30 psi |
Max backwash pressure | 2.5 bar | 36 psi |
Avoid any abrupt pressure variations during start-up, shutdown, cleaning or other sequences to prevent possible membrane damage. Flush the UF system to remove shipping solution prior to start-up. Remove residual air from the system prior to start up.
Place of Origin: China
Brand Name: DOW (Acquired by DuPont)
Certification: CE
Minimum Order Quantity: 1 pc
Delivery Time: 5-8 work days
Supply Ability: 60000 Unit/Units per Month
For application cases, please visit: www.fgwater.com/Industries/
For detailed parameters:
